BAGGER

KLR.5100
Bagel Bagger

KLR.5100

6 or 8 lane penny pack bagger for bagels and English muffins. The bagger features our follow arm system for ensuring the bags are placed onto the outfeed so that the first product does not fall over.

Dispatch option

From a single line of bagels, the machine automatically distributes the product into multiple rows, ensuring maximum bagging capacity.

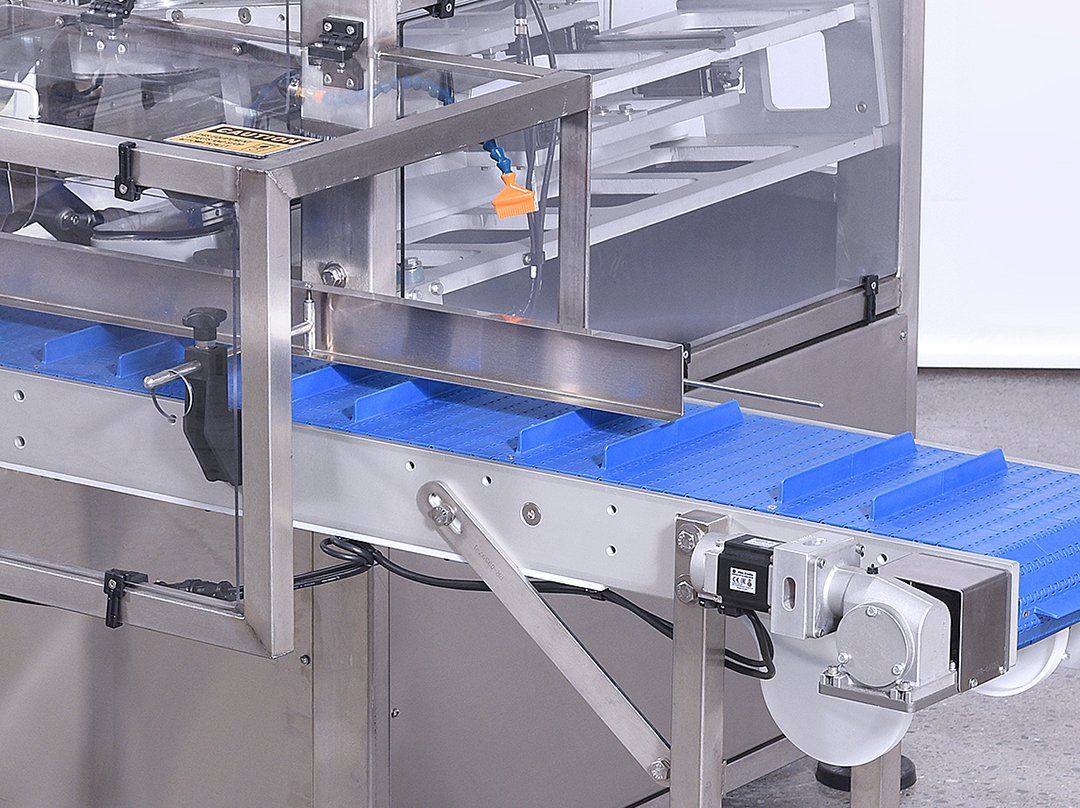

Infeed conveyor

The system waits until all rows are filled with bagels, then precisely feeds the rotary servo with the correct quantity of product. Capable of handling up to 50 packs per minute, the system processes up to 300 bagels per minute when packaging 6 bagels per pack.

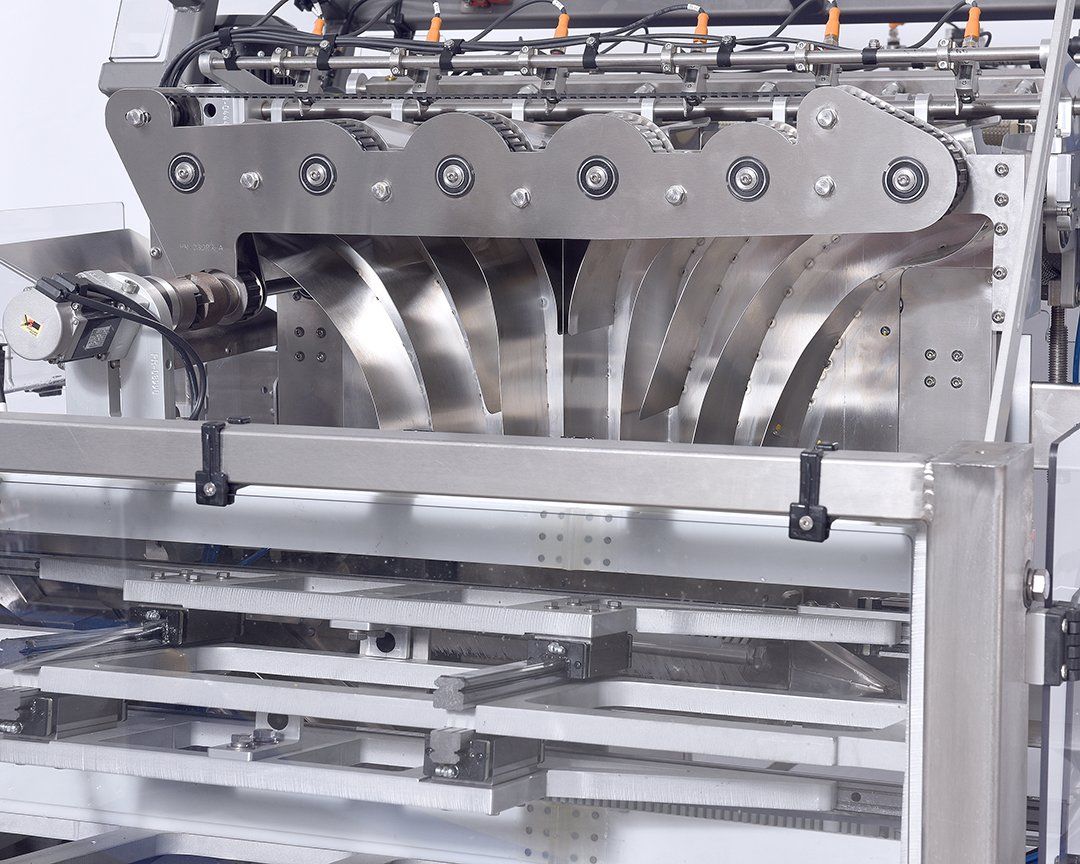

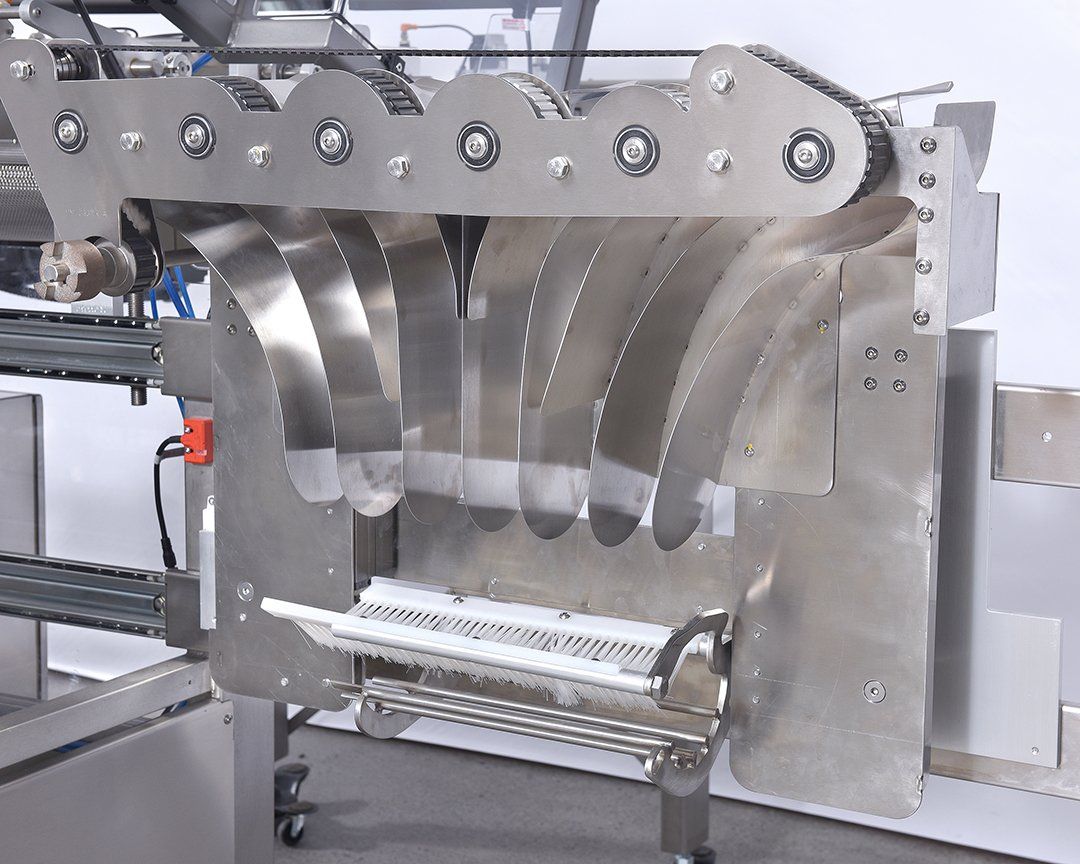

Chute

The chute can be customized to match your product specifications, maximizing performance. As an option, it can also be configured to bag English muffins, typically accommodating up to 8 rows.

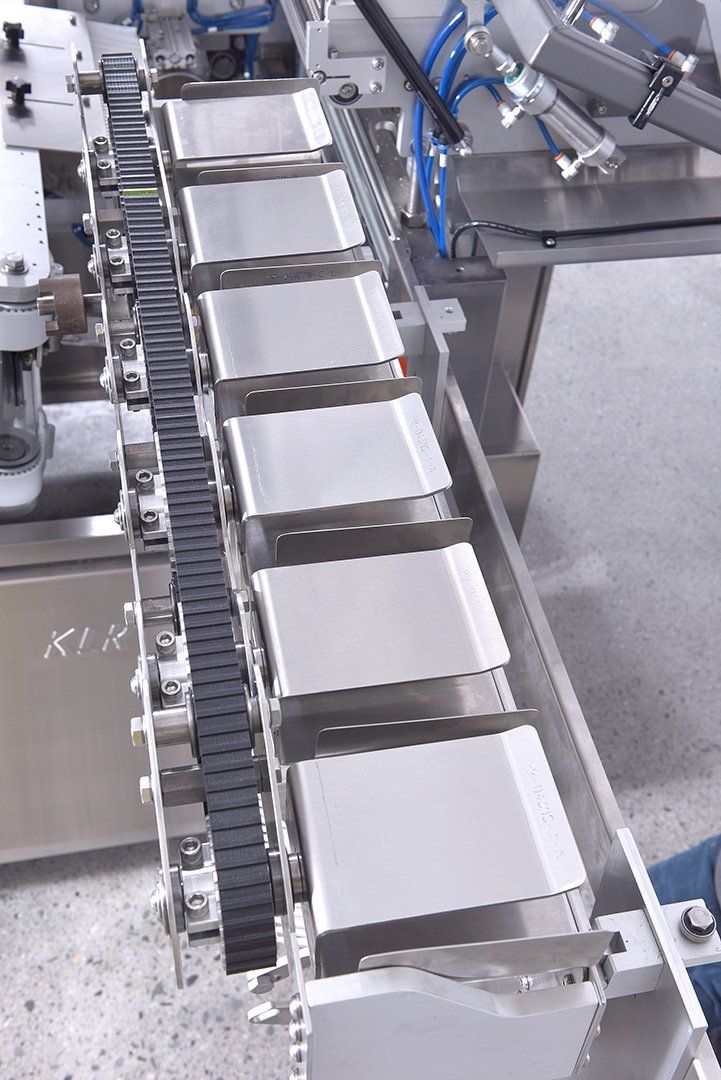

Pushers

Bags are inflated as the product drops into the basket. An air blower holds the bagels in place while the pushers begin their forward motion. Two alternating pushers maximize efficiency and ensure continuous operation.

Dimensions

SPECIFICATIONS

engrenage_icon

6 or 8 lane penny pack bagger for bagels and English muffins. The bagger features our follow arm system for ensuring the bags are placed onto the outfeed so that the first product does not fall over.

eclair_icon

Electrical: 220V – 15A – 3PH

psi_icon

Pneumatic: 10CFM @ 90PSI

Rate: Up to 50 bags per minute

Product size: up to 5” diameter for 6 lanes.

MANUALS

CHARACTERISTICS

  • Number of lanes can be programmed per product for packaging 4, 5 or 6 product.
  • Stainless Steel and anodized aluminum construction.
  • Add bags at any time without stopping the machine.
  • Servo controlled chute mechanism.
  • On the fly lane size changes.
  • Optional interchangeable chutes for different product types.
  • Start-stop outfeed conveyor included, multiple closure options are available.
  • Left- or right-hand configurations.
  • Optional dispatch head for systems where bagels arrive in single file.
