BAG CLOSING MACHINE
KLR.955

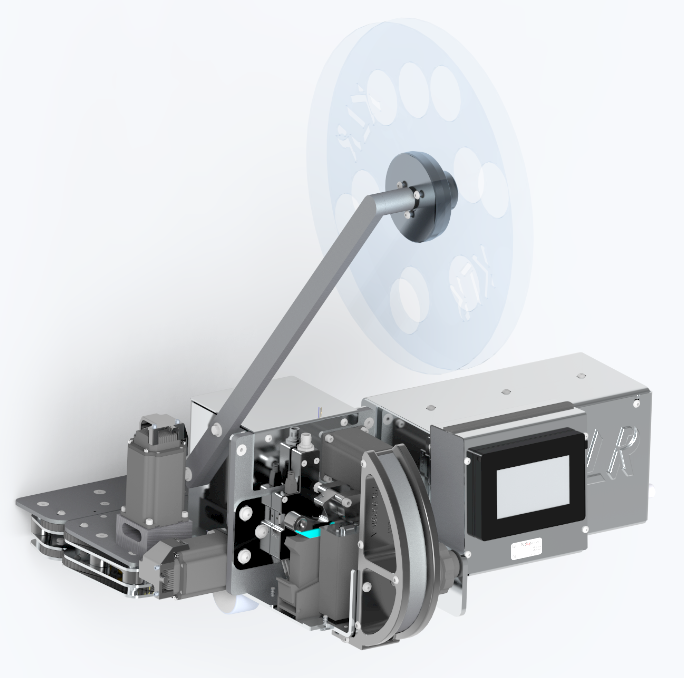

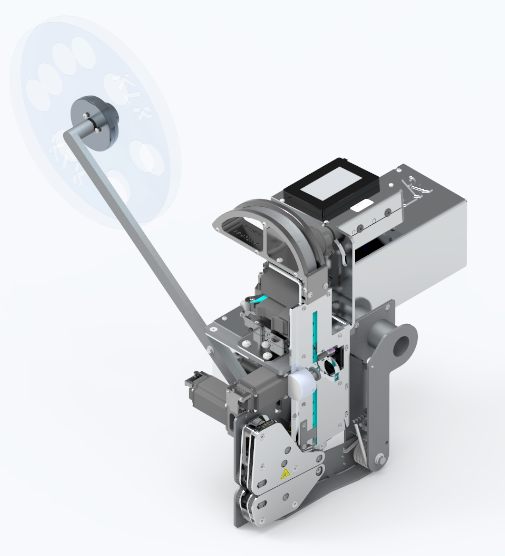

Automatic Bag Closer
Vertical automatic clipping machine with the microprocessor control, incorporating our unique clip shear/break and suspension anti-jam mechanisms. Independent motors perform each clip application function for precise control over the full clip installation process. Touch screen for
easy machine control and constant feedback on operation.
Electrical requirements: 115/240V – 2.4A/1.2A– 1PH
CHARACTERISTICS
- Automated Unload and Load function (1 button on touchscreen) allows for easy clip changeovers. Home sensor loads the strip to the right location automatically.
- Load function automatically feeds clips through to ensure the clip in ready position has the latest print information.
- Breaker delay is computer controlled and easily user adjusted for optimal setting for your production needs. Thus, ensuring tight bags without marking or tearing the bag.
- The belt mechanism features four synchronous drive belts. The bag tail is fed evenly without slippage through the clip without marking or stretching the bag.
- Lower belts are mounted on a suspension track for jam prevention.
- Bag detection by sensor for cycle start for less mechanical parts.
- Clip breaker in shear for minimal impact to machine drive train through end of cycle.
- Clips are fed linearly through the strip track allowing simple integration of multiple printing options without the need for an external encoder.
- Stainless steel and anodized aluminum construction
Optional KLR.937 inkjet printer
For integrated printing on clips.
- Fully customizable printing within the printing area of the clip.
- User interface is the touchscreen of the KLR.950, for a simplified user experience.
- Automatic date and hour coding.
SPECIFICATIONS
Mechanical unit:
- Length: 10.5" Width: 22.5" Height: 22"
