BAG CLOSING MACHINE

1-

KLR950

The KLR.950 is a high-performance bag closing system designed for reliability, ease of operation, and seamless integration into modern packaging lines. Intelligent automation, precise bag handling, and flexible printing capabilities help maximize productivity while delivering a consistent, high-quality closure every cycle.

2-

See in action

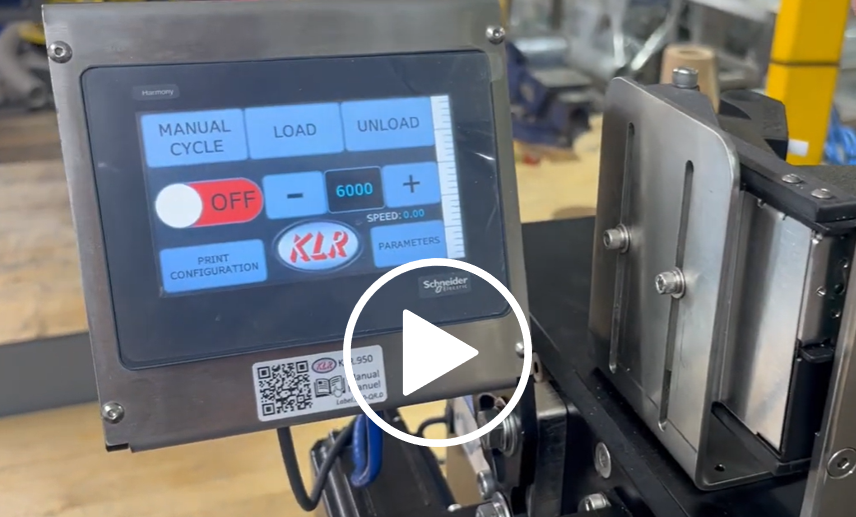

Micro processor controlled automatic machine, incorporating our unique clip breaker and suspension anti-jam mechanism. Independently controlled motors perform each task for precise control over the whole clip installation process. Touch screen allows constant feedback on operation, and access to machine controls.


Electrical requirements: 115/240V – 5A – 1PH


3-

Shear option

Shear cutting is our recommended cutting method, as it provides reliable and consistent cutting performance thanks to the strength of the link.


The shear system also offers greater flexibility by accommodating a wider variety of clip materials.


KLR.950

Automatic Bag Closer

KLR.950

The KLR.950 is a high-performance bag closing system designed for reliability, ease of operation, and seamless integration into modern packaging lines. Intelligent automation, precise bag handling, and flexible printing capabilities help maximize productivity while delivering a consistent, high-quality closure every cycle.

See in action

Built for productivity, the KLR.950 accommodates the high speeds required by modern packaging lines. Watch the machine in action as it reaches up to 80 packs per minute while maintaining consistent and reliable bag closing performance.

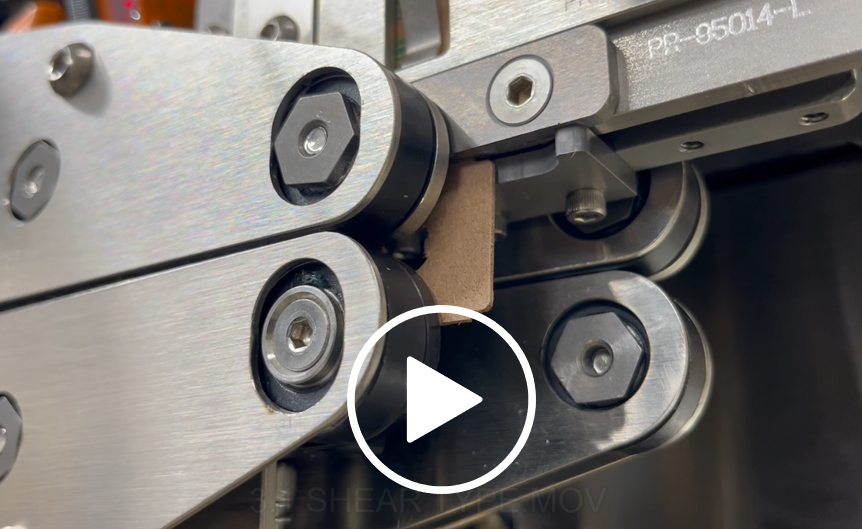

Shear option

Shear cutting is our recommended cutting method, as it provides reliable and consistent cutting performance thanks to the strength of the link.


The shear system also offers greater flexibility by accommodating a wider variety of clip materials.

Break option

Break option is the traditional clip separation method, designed to provide a seamless transition to our equipment. It delivers reliable performance with standard clip materials while keeping the door open for future alternatives. As packaging requirements evolve, the machine can later be converted to the Shear cutting option to expand material compatibility and application flexibility.

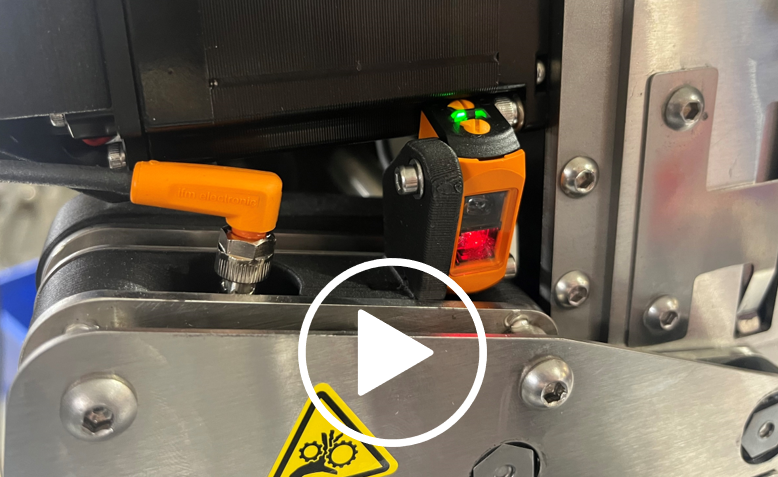

Motion sensor option

Using built-in interlocks, the machine can detect when an issue occurs during the bagging process and respond accordingly.

Inkjet printer

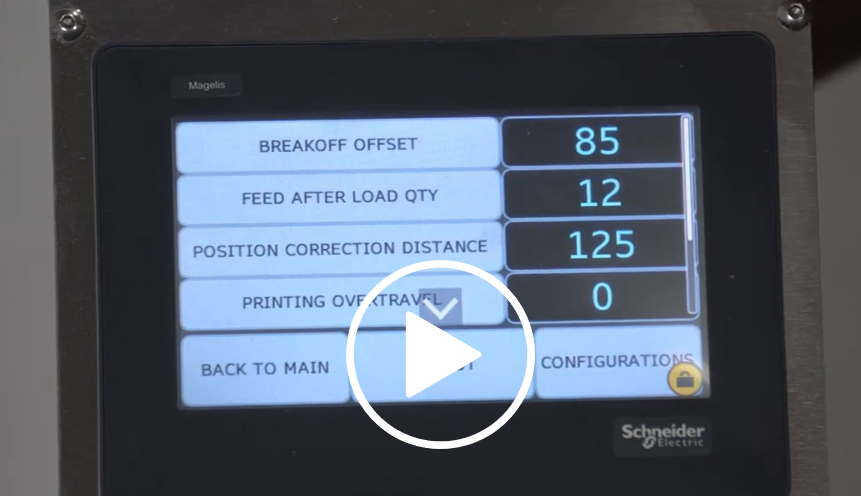

Create and modify clip layouts directly from the touchscreen with a fully customizable interface. This flexibility allows easy adaptation to different products and customer requirements, while significantly simplifying future changeovers for operators and reducing setup time.

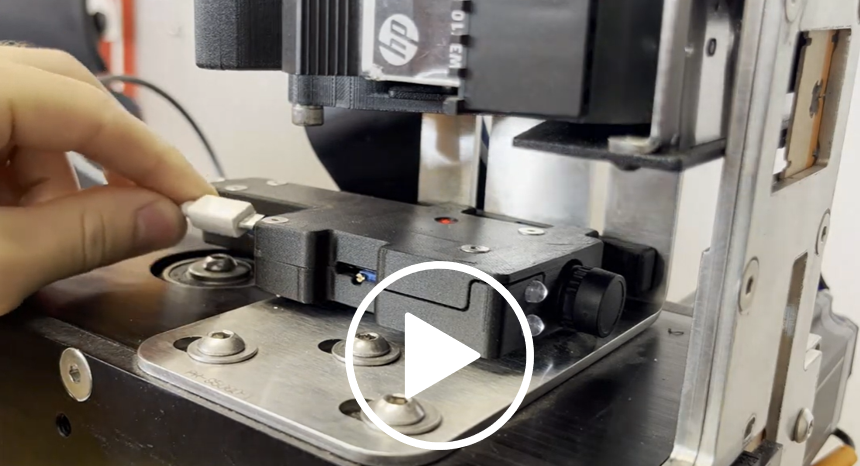

Camera option

Designed to inspect every clip and detect missing or faded prints. When an issue is identified, the system can automatically trigger an interlock to stop the upstream machine until the problem is resolved.

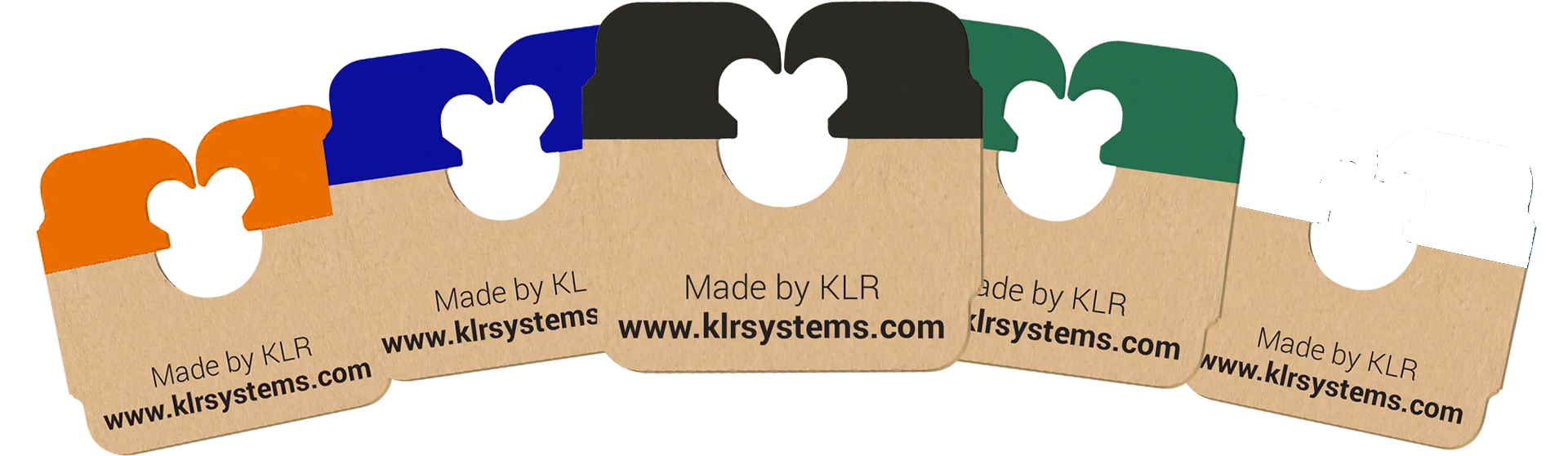

As a clip manufacturer, KLR supplies high-quality clips specifically designed to deliver optimal performance in our bag closing machines.

Find catalogue

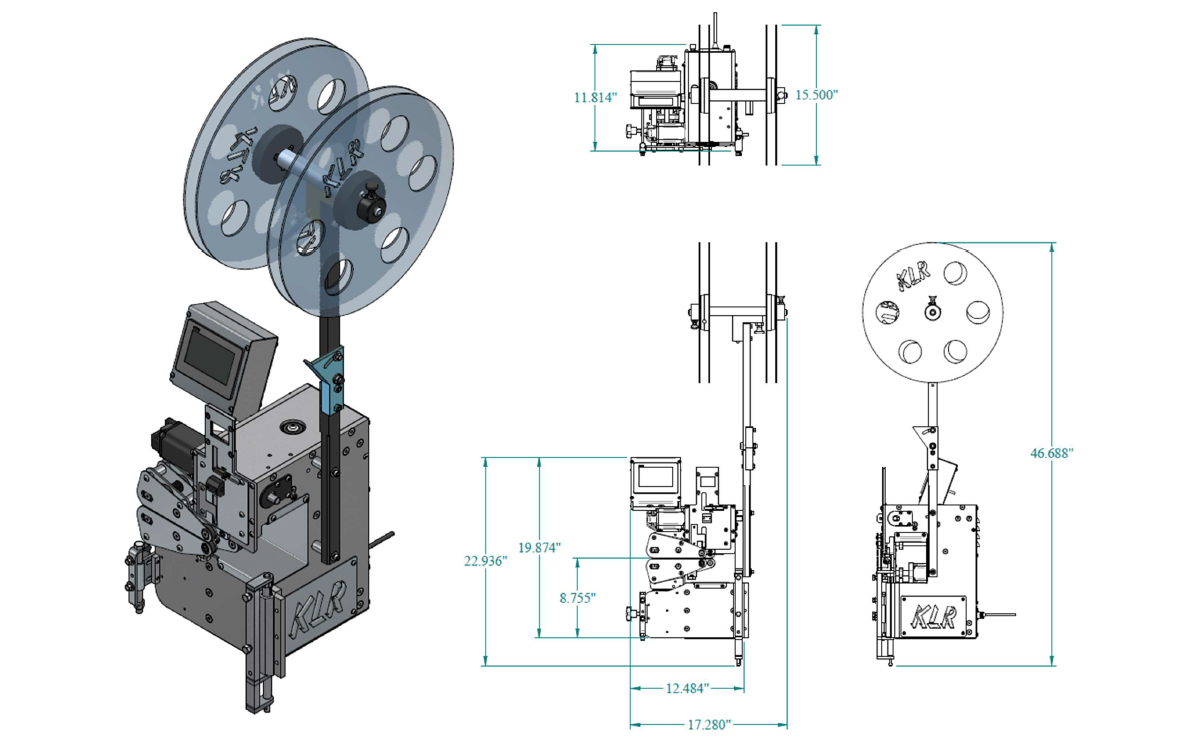

Dimensions

CHARACTERISTICS

  • Automated Unload and Load function (1 button on touchscreen) allows for easy clip changeovers. Home sensor loads the strip to the right location automatically.
  • Load function automatically feeds clips through to ensure the clip in ready position has the latest print information.
  • Breaker delay is computer controlled and easily user adjusted for optimal setting for your production needs. Thus ensuring tight bags without marking or tearing the bag.
  • The belt mechanism features four synchronous drive belts. The bag tail is fed evenly without slippage through the clip without marking or stretching the bag.
  • Lower belts mounted on suspension track for jam prevention should anything other than a bag tail go through the belts.
  • Bag detection by sensor for cycle start for less mechanical parts.
  • Clip breaker in shear for minimal impact to machine drive train through end of cycle.
  • Clips are fed linearly through the strip track allowing simple integration of multiple printing options without the need for an external encoder.
  • Stainless steel and anodized aluminum construction.

SPECIFICATIONS

  • Length: 13.5" Width: 11" Height: 22.5"
  • Electrical: 115/240V – 5A – 1PH
