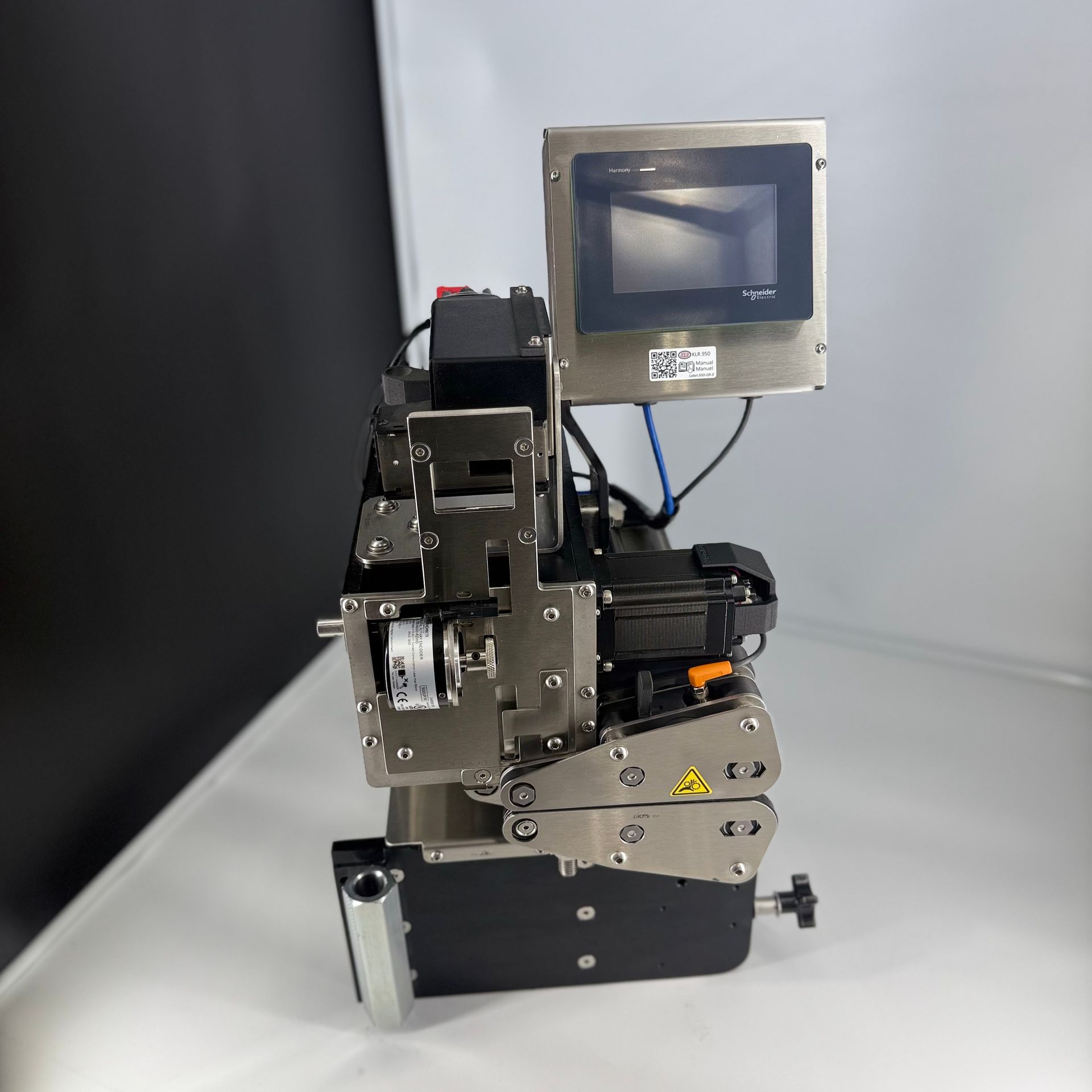

BAG CLOSING MACHINE

KLR.950

Automatic Bag Closer

Ask for a quote

Micro processor controlled automatic machine, incorporating our unique clip breaker and suspension anti-jam mechanism. Independently controlled motors perform each task for precise control over the whole clip installation process. Touch screen allows constant feedback on operation, and access to machine controls.


Electrical requirements: 115/240V – 5A – 1PH

Shear option

Shear cutting is our recommended cutting method, as it provides reliable and consistent cutting performance thanks to the strength of the link.


The shear system also offers greater flexibility by accommodating a wider variety of clip materials.

Motion sensor option

Using built-in interlocks, the machine can detect when an issue occurs during the bagging process and respond accordingly.

As a clip manufacturer, KLR supplies high-quality clips specifically designed to deliver optimal performance in our bag closing machines.

Find catalogue

CHARACTERISTICS

  • Automated Unload and Load function (1 button on touchscreen) allows for easy clip changeovers. Home sensor loads the strip to the right location automatically.
  • Load function automatically feeds clips through to ensure the clip in ready position has the latest print information.
  • Breaker delay is computer controlled and easily user adjusted for optimal setting for your production needs. Thus ensuring tight bags without marking or tearing the bag.
  • The belt mechanism features four synchronous drive belts. The bag tail is fed evenly without slippage through the clip without marking or stretching the bag.
  • Lower belts mounted on suspension track for jam prevention should anything other than a bag tail go through the belts.
  • Bag detection by sensor for cycle start for less mechanical parts.
  • Clip breaker in shear for minimal impact to machine drive train through end of cycle.
  • Clips are fed linearly through the strip track allowing simple integration of multiple printing options without the need for an external encoder.
  • Stainless steel and anodized aluminum construction.

SPECIFICATIONS

  • Length: 13.5" Width: 11" Height: 22.5"
  • Electrical: 115/240V – 5A – 1PH
