SEALER

KLR.HS90B

High speed automatic sealer

Building on the proven success of the KLR.HS70B, the new KLR.HS90B delivers higher throughput with increased feet-per-minute performance while producing stronger, more consistent seals. Its advanced hot air sealing technology applies uniform heat across the entire seal, creating a more airtight and reliable closure than conventional hot wire sealers. Designed for continuous flow-through operation, the HS90B seals each bag as it travels at a constant speed, ensuring consistent quality even at high production rates. To maximize efficiency and minimize footprint, the machine performs both bag sealing and bag tail trimming simultaneously within a compact conveyor length, providing a fast, reliable, and space-efficient packaging solution.


Electrical requirements: 115/240V – 12A – 1PH

engrenage_icon

Building on the proven success of the KLR.HS70B, the new KLR.HS90B delivers higher throughput with increased feet-per-minute performance while producing stronger, more consistent seals. Its advanced hot air sealing technology applies uniform heat across the entire seal, creating a more airtight and reliable closure than conventional hot wire sealers. Designed for continuous flow-through operation, the HS90B seals each bag as it travels at a constant speed, ensuring consistent quality even at high production rates. To maximize efficiency and minimize footprint, the machine performs both bag sealing and bag tail trimming simultaneously within a compact conveyor length, providing a fast, reliable, and space-efficient packaging solution.

eclair_icon

Electrical requirements: 115/240V – 12A – 1PH

SPECIFICATIONS

  • Length: 24” Width: 13” Height: 28” (mounting post)
  • Electrical: 115V – 12A – 1PH
  • Pneumatic: 8CFM @ 60PSI


MANUALS

English

KLR.HS90B MANUAL KLR-00001- (COMING SOON)


Français

KLHS90B MANUEL KLR-00001 - (BIENTÔT DISPONIBLE)

CHARACTERISTICS

  • Stainless steel case with an anodized aluminum frame
  • Compact design for horizontal or vertical mounting
  • Available in left- and right-hand configurations
  • Independent heat and internal belt speed adjustment for precise seal control
  • Low-maintenance hot air heating system
  • PID temperature controller with solid state relay for stable and consistent sealing performance
  • Runs at speeds up to 90 feet per minute
  • Round cut bag tail removal system fully integrated
  • Wrinkle eliminator fully built in for improved seal presentation and consistency
  • Optional bag tail removal vacuum system
  • Optional inlet vacuum system
  • Optional bag flattener for better bag presentation at the sealer inlet

VIDEOS

Shear option articles

Videos list:





Break option articles

Videos list:

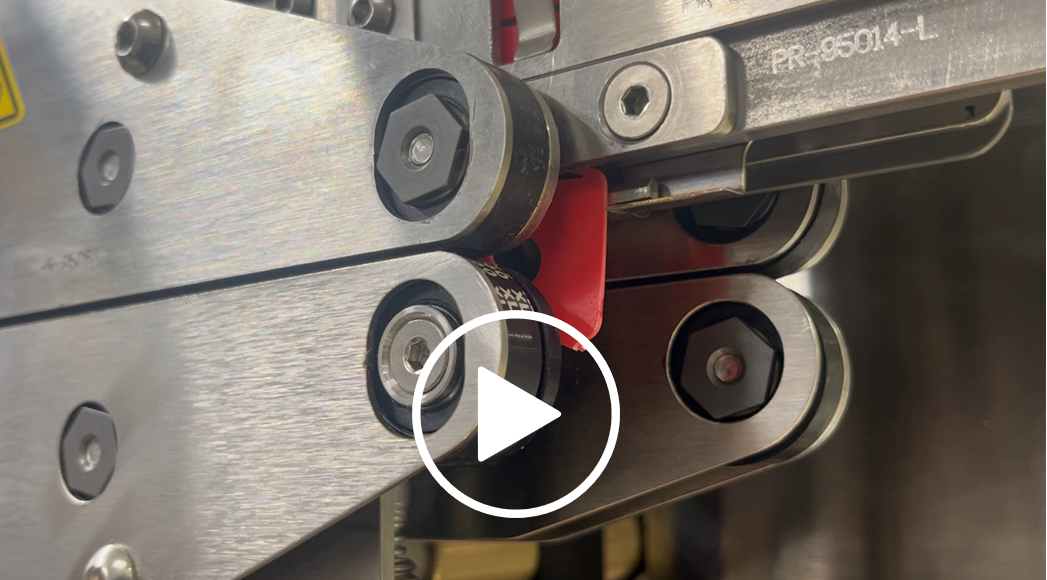

Break conversion video
